GENERAL ARTWORK DIMENSION #
Bleeding : 2mm from all sides of edges (Artwork Dimension)
Margin : 2mm from all sides of edges (Safe Zone)
Example:
Wobbler size 89mm x 54mm, therefore
Bleeding Size : 93mm x 58mm
Actual Size : 89mm x 54mm
Safe Zone : 85mm x 50mm
Gluing Area #
Fixed at center of the back side of the printing sheet, please use our template when preparing the artwork.
FILE FORMAT #
Adobe Acrobat Document (*.pdf)
- Provide better printing quality TIFF Image (*.tiff)
- Provide fairly good printing quality if the file is converted under certain specification
- Setback: Blurred text or vector images compare with pdf file format JPEG Image (*.jpg / *.jpeg)
- Provide fairly good printing quality if the file is converted under certain specification
- Setback: Blurred text or vector images compare with pdf file format
STANDARD CHECKLIST #
ARTWORK #
- Artwork is prepared in our Product Size Templates
- Background design expand to Full Bleed size
- Vital elements are within Safe Zone
- No crop mark are applied
DESIGN #
- All images have been exported / converted to TIFF files
- Background, design effects, photos, images (not including text / vector images) Never manipulate images in layout program
- Resolution: 300dpi
- Color Mode: CMYK
FONTS #
- No fonts of less than 4 pts
- Curve / Path / Create outline all fonts
MARKING & TRAPPING #
- Do not apply any crop mark and trapping to your files, including box, bleeding marking, margin marking and custom die cut (Dotted line).
LINE WEIGHT #
- No lines are less than 0.25pts
FILE FORMAT #

FILE PREPARATION #
Page Arrangement for Standard Wobbler in ONE PDF file
Page 1: Overview artwork (CMYK + Die Line)
Page Arrangement for Custom Die Cut Wobbler in ONE PDF file
Page 1: Overview artwork (CMYK + Die Line)

Page 2: Printable artwork only (CMYK)

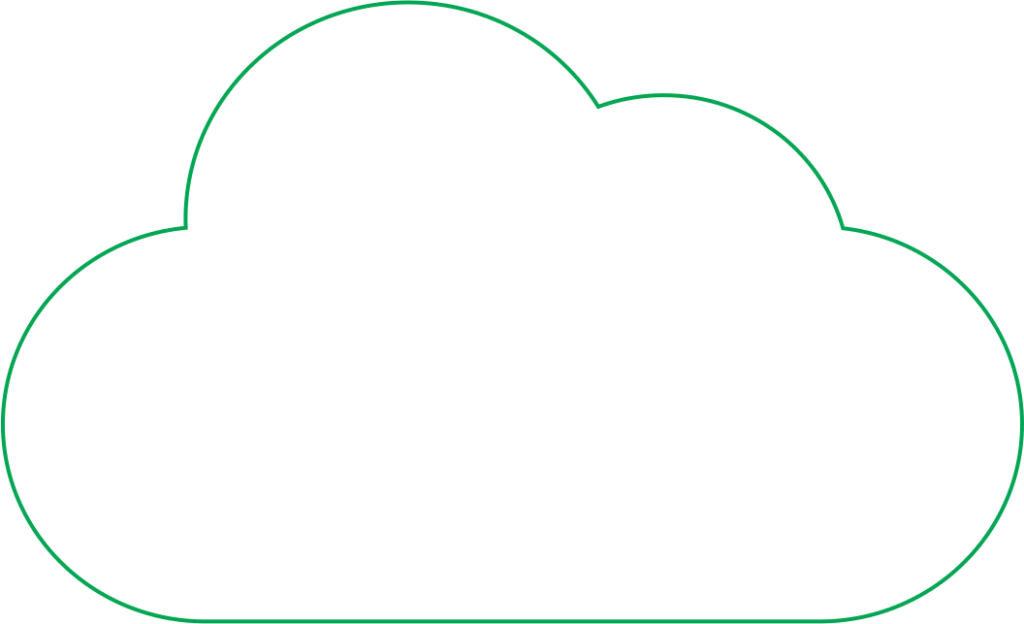

Page 3: Die Line only

DIE LINE PRECAUTIONS #
Cutting Edge Tolerance: +- 1mm Below are mis-registration scenario that can be happen during the die-cut process when die line is not correctly placed, as + – 1mm cutting edge tolerance has to be taken into consideration.

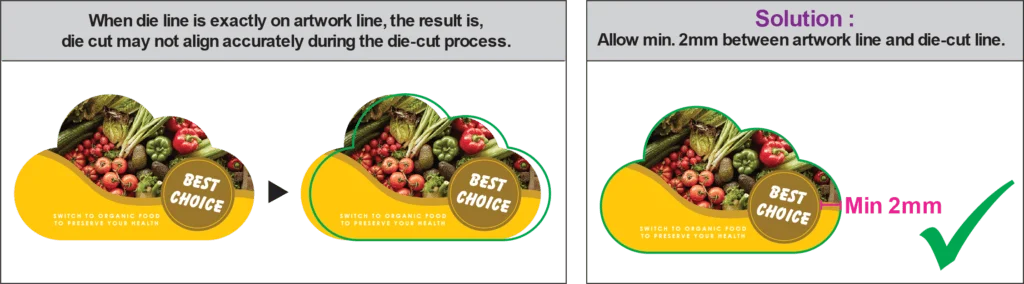

Scenario 1: What happens when die line falls exactly on the artwork line.

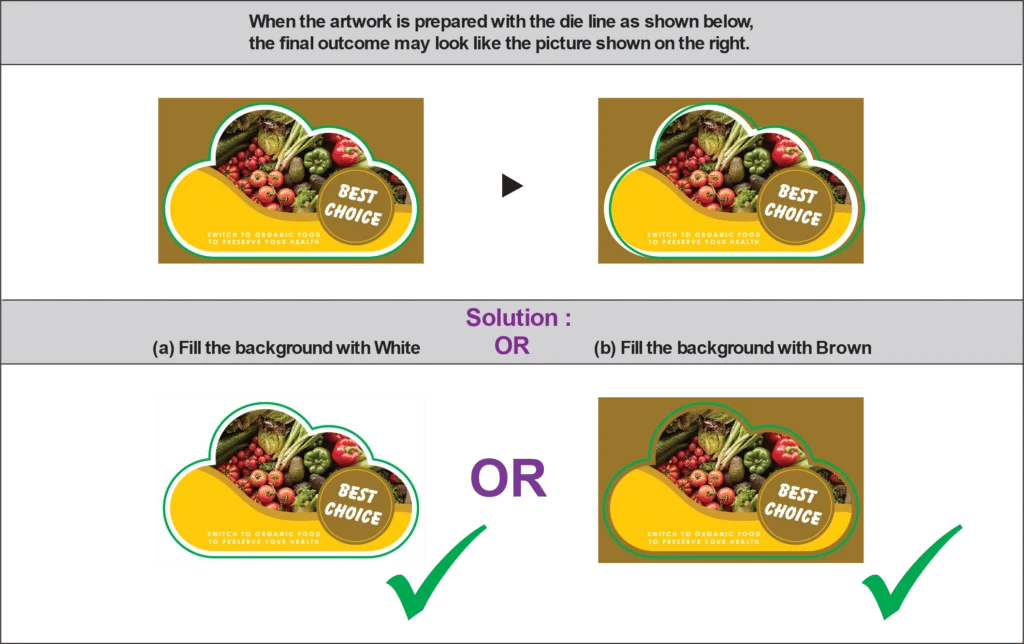

Scenario 2: What happens when die line is exactly on different colour background.
* Customer is advised to revise artwork when these problems are detected.
* Expressprint shall not be held liable for any of defect in printing outcome due to artwork sent not correctly prepared as advised.

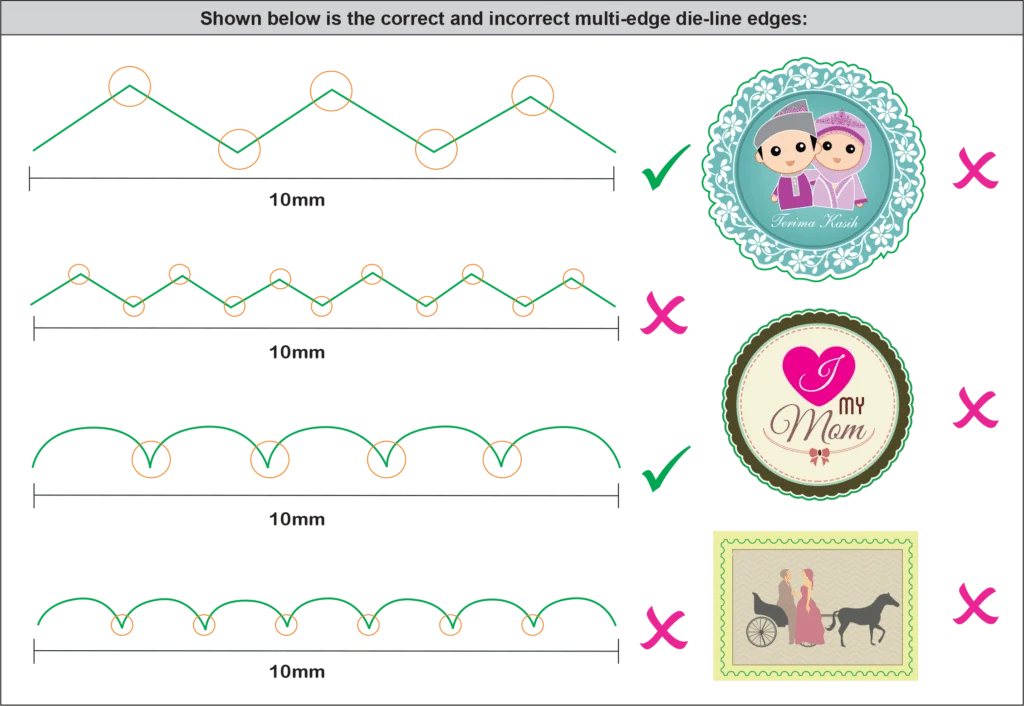

GAP BETWEEN MULTI-EDGES DIE-LINE #
How to define “Multi-Edges Die-Line”: More than 5 cutting edges within 10mm.
