Static Cling Window Sticker (Car Decal) – Artwork Specification

PRINTABLE AREA & SAFE ZONE #

1. Safe Zone: 5mm for all edges
2. Printable area only applicable within safe zone
3. Artwork do not bleed out of safe zone

EXAMPLE #

Actual Size : 130 mm x 170mm Safe Zone / Printable Area : 120mm x 160mm

  #

SUBMIT ARTWORK FOR STATIC CLING WINDOW STICKER FILE #

Please always refer to table below for page arrangement before submit your artwork.

  #

NOTES: #

1. 4C & White Base (Face Out/Face In) require to submit 1 PDF file with 2 pages.
2. 4C & White Base & 4C require to submit : 1 PDF file with 2 pages for Face Out. : 1 PDF file with 2 pages for Face In.

Example: #

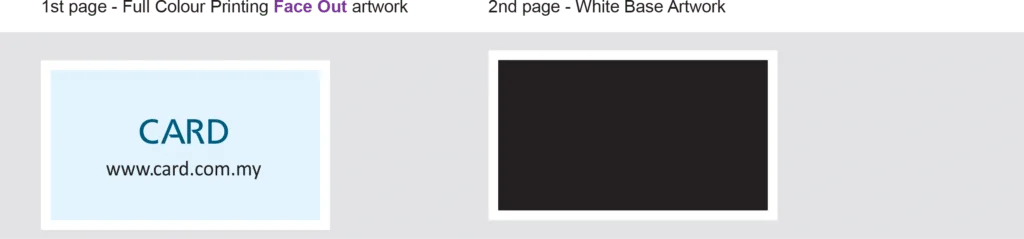

FACE OUT VIEW #

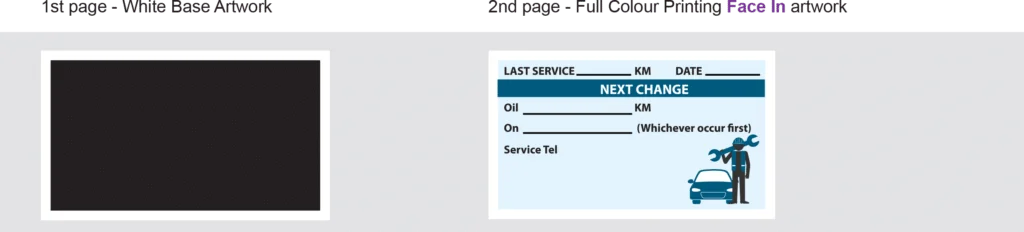

FACE IN VIEW #

Please prepare in opposite sequence – White Base Artwork followed by Full colour Printing.

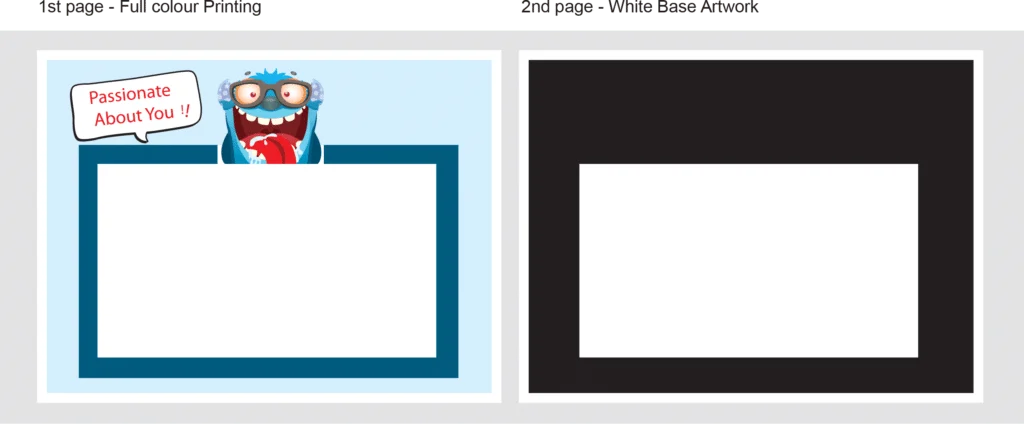

BOTH SIDE VIEW #

1st PDF #

2nd PDF #

IMPORTANT NOTES IN PREPARING WHITE BASE ARTWORK #

• Fill the artwork with black (K100) to indicate the area for white base.
• Rename colour to precisely “White” to indicate the area of white base instead “WHITE” or “white” *Expressprint will not held responsibility on any wrong white spot colour naming error. (eg. “WHITE” or “white” or White(space) )
• Only use Adobe Illustrator to prepare the white base artwork.
• JPEG file format or JPEG save in PDF format is not allowed while prepare white based artwork.

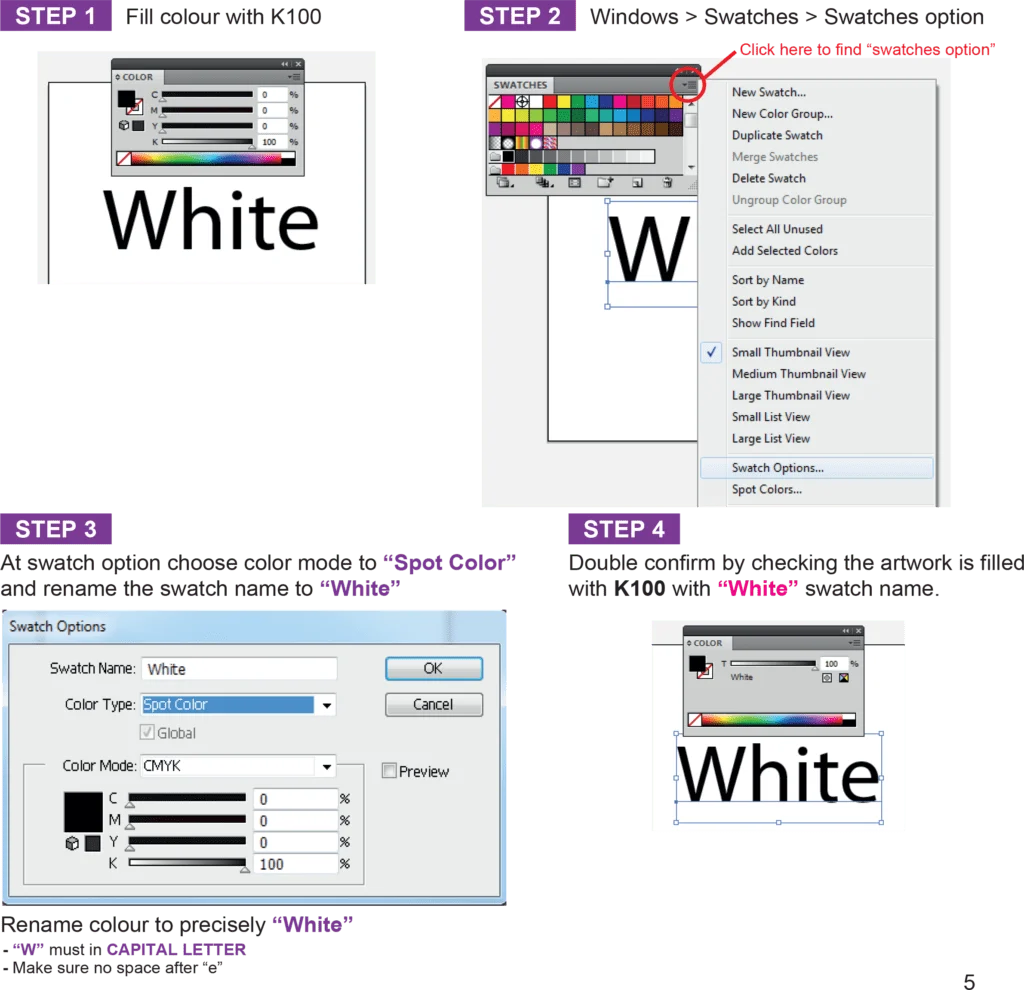

• White based artwork must prepare in VECTOR Rename the color swatch name by using Adobe Illustrator

IMPORTANT NOTES IN PREPARING ARTWORK FILE: #

-For Face out View & Both Side View, we’ll help you to reflect your face out artwork which is 1st page & 2nd page for white base for printing.

FILE FORMAT #

-Only Adobe Acrobat Document (*.pdf) is acceptable. -File Size & Resolution -File resolution at 100% : 300dpi -File size at 100% : below 5MB / file

ARTWORK DESIGN #

-All images have been exported / converted : background, design effects, photos, images to TIFF files (not including text / vector images) -Tiff File Resolution : 300 dpi -Color Mode : Process CMYK mode *ink converage not suggested to exist 240% to avoid transparency issue

LINE WEIGHT #

-No lines of less than ≥0.25pts. are used -Color : CMYK mode

FONTS #

-Curve / Path / Create outline all fonts

MARKING & TRAPPING #

-Never apply any crop mark or trapping onto the files.
